Having combined our highly competent crews, strong equipment bases and experience gained while executing a variety of projects, we are able to provide a full slate of onshore drilling services to the oil & gas upstream industry.​

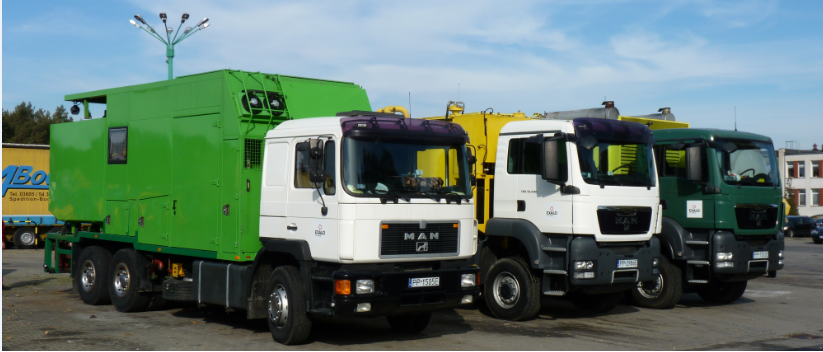

EQUIPMENT:

  • Pumping Unit single triplex FC 1251 (4 pcs), TPT 2250, HPS 600, Gardner Denver
  • Pumping Unit single duplex CA 320 (6 pcs)
  • Blender
  • Sand transportation truck
  • Data Van
  • Liquid Additive System
  • Tanker truck
  • Tanker truck CMAK
  • Tanker truck CR-4 (2 pcs)
  • High Temp Steam Generator PPU
  • Acid resistant tank V50 m3 (6 pcs)
  • Acid resistant tank V60 m3 (3 pcs)
  • HP Manifold

Pumping Unit – FC 1251
Mercedes truck mounted units of the following parameters:

  • Detroit Diesel deck engine 1250 HP,
  • SPM Triplex pump 1300 HHP,
  • Hydraulic Power 1100 HP,
  • Allison Transmission DP 8962,
  • Piston OD 5, 6” and 3,75”
  • Maximum Working  Pressure 10 000 psi – plunger 5”, 6”
  • Maximum Working  Pressure 15 000 psi – plunger 3,75”
  • Pumping rates:
  • 0,45 m3/min at 700 bar,
  • 0,9 m3/min at 514 bar,
  • 1,3 m3/min at 363 bar,
  • 1,7 m3/min at 281 bar,
  • 2,2 m3/min at 206 bar

STIMULATION & FRACKING SERVICE – SCOPE OF WORKS:

  • Acidizing and fracturing design (FracproPT and StimPT software)
  • Hydraulic fracturing and acid treatments
  • Acid treatment and fracturing process data aquisition
  • Micro-fracturing
  • Hydro-slotting perforation
  • Matrix acidizing
  • Well clean out
  • Leak off test
  • Pumping jobs

Gear

Gear Ratio:

Engine RPM



Pump Input BHP



(l/min)

(GPM)

(bar)

(PSI)

1st

3,75

1700

551,2

145,6

1905,7

790,1

11459

3,75

1800

583,3

154,1

1905,7

790,1

11459

3,75

1900

615,9

162,7

1905,7

790,1

11459

2nd

2,69

1700

768,1

202,9

1905,7

790,1

11459

2,69

1800

813,5

214,9

1905,7

790,1

11459

2,69

1900

858,5

226,8

1905,7

790,1

11459

3rd

2,2

1700

939,2

248,1

1905,7

790,1

11459

2,2

1800

994,4

262,7

1905,7

790,1

11459

2,2

1900

1049,7

277,3

1905,7

790,1

11459

4th

1,77

1700

1167,4

308,4

1905,7

730,2

10591

1,77

1800

1236,3

326,6

1905,7

689,6

10002

1,77

1900

1304,8

344,7

1905,7

653,3

9476

5th

1,58

1700

1307,9

345,5

1905,7

651,8

9454

1,58

1800

1384,7

365,8

1905,7

615,6

8929

1,58

1900

1461,5

386,1

1905,7

583,2

8459

6th

1,27

1700

1627,0

429,8

1905,7

523,9

7599

1,27

1800

1722,7

455,1

1905,7

494,8

7177

1,27

1900

1818,5

480,4

1905,7

468,8

6799

7th

1

1700

2066,5

545,9

1905,7

412,6

5984

1

1800

2188,0

578,0

1905,7

389,6

5651

1

1900

2309,5

610,1

1905,7

369,1

5354

Annulus Pumping Unit HPS-600
The producer: Manifold Systems Ironworks SA, Switzerland
The chassis: MAN TGX 6x4
The engine fuel pump: CATERPILLAR C18A ATAAC of ACERT/under 620 HP at 2100 RPM.
Automatic transmission Allison type S 6610M
Additional platform reducing Eaton AT 1202 continuously 2: 1

  • High-pressure triplex pump:
  • Producer – Manifold System Ironworks (MSI) - type TI 600
  • Effective power 600 KM
  • The diameter of plunger:  3”

Max. pumping pressure 14140 PSI (975 bar) with a rate 70l/min
Max. rate 950 l/min with a pressure 225 bar
Centrifugal pump made by Klaus Union TYP SLM NVS
Working tanks 2 pcs. the capacity 3000 l one,
Electronic measurement and data record system

Manifold
Mercedes truck mounted unit enabling connection up to six Pumping Units.

  • Working pressure – 13 500 PSI
  • Low and high pressure manifolds

Blender
Mercedes truck mounted unit is a computer controlled blender for mixing treatment fluids and feeding pumping units.

  • Maximum fluid rate – 9.5 m3/min,
  • Maximum proppant rate – 7 t/min
  • Possibility of setting different fluid and proppant rates, as well as volume of dry liquid chemical additives

Sand Transporter
Trailer mounted proppant transport box with feeding system

  • Load capacity – 40 ton + 40 ton by crane on “bigbag”
  • Lifting feeding system

Liquid Additive Unit
This unit is a ten (10) liquid chemical additive pumping system.
The unit is comprised of:

  • All functions and work parameters are adjusted and controlled from control panel and additionally recorded by Data Acquisition System (DAS)
  • Liquid chemical pumping system:
    3pumps with rate  0,6 – 9,5 l/min
    5 pumps with rate  1,9 – 30 l/min
    2 pumps with rate  3,8 – 64 l/min

Each chemical system is provided with its own individual coriolis chemical flow meter and transmitter and can be controlled in either manual or automatic mode.

  • Two transfer pumps with pumping rate  7,6 – 132,5  l/min.
  • 10 chemical tanks with a capacity of 1m3 each.

Monitoring System
Mercedes Van mounted, complete with a set of instrumentation to monitor, control and record a progress of treatment operations.
The system can monitor:

  • Sand concentration
  • Working pressure
  • Annulus pressure
  • Bottomhole pressure (calculated)
  • Pumping rate
  • Flow rate

Computerized data acquisition system enables data recording on a disk, as well as real time display and reviews the data after job completion.

To receive more details about Stimulation Service please CONTACT US!
